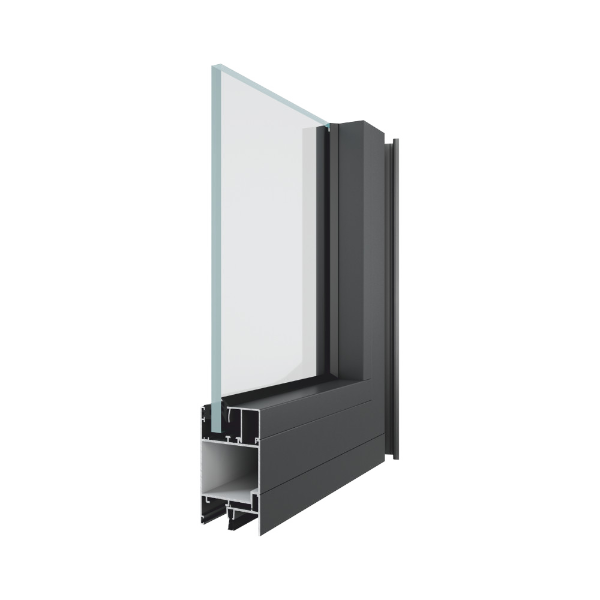

SCHILLING PL 50.NI
Uninsulated window and door system
Distinguishing features
Uninsulated system
Schilling 50.NI is a system without thermal breaks for doors, windows and storefronts, where thermal insulation is not necessary
Many applications
For sliding, opening doors and RU windows.
Solid construction
50mm
Technical data
Depth of construction
57 mm (windows, doors made of window profiles, folding doors), 50 mm (up and over doors, standard, underslung)
Glazing
With gaskets, EPDM, with neutral silicone
Glazing widths
6 - 43mm (windows, folding doors), 4 - 43 (doors made of window profiles), 4 - 34 (swinging doors, standard, underslung)
Air permeability
Class 2 acc. PN-EN 1227
Operational force
Class 2 acc. PN-EN 12046-2:2001
Mechanical durability
Class 5 acc. PN-EN 12400:2004
Smoke resistance
Class Sa, Sm acc. PN-EN 1634-3
Acoustic insulation
Rw ≤ 38 dB acc. PN-EN ISO 10140-3
Schilling PL 50.NI
- Uninsulated system
- For sliding, opening doors and RU windows.
- Solid construction thanks to the large profile depth (50mm)
