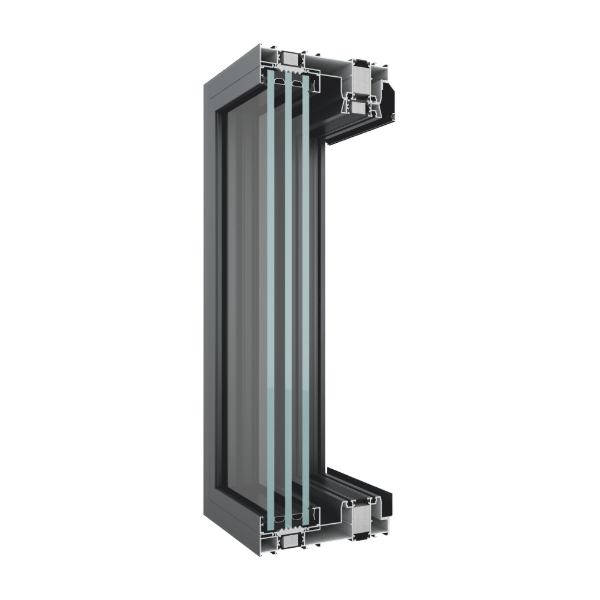

Schilling PL Slide.HI

Sliding door system

Description

Schilling PL Slide.HI is a system used for the manufacture of windows and lift-slide doors for external development. It is based on aluminum profiles with thermal separators. The construction of the Slide.HI system has an impact on reducing heat energy losses, and thus on reducing operating costs. The width and height of the door leaf can reach up to 3300 mm with a leaf weight up to 440 kg.

Distinguishing features

Highest insulation

Uf = from 1,1 W/m2K,

Up to 400kg

Schilling PL Slide.HI allows the use of wings weighing up to 430 kg. Despite this, constructions made in this system maintain a slim and elegant look.

Automatization

Schilling PL Slide.HI enables the installation of an automatic system for opening and closing the door

Technical data

Profile diemnsions

Frame 180mm, wing 81mm

Wing dimensions

Max height 3300 mm, width max. 3300 mm

Maximum wing weight

Up to 430 kg

Heat transfer coefficient

Uw from 0,8 W/m2K, Uf up to 1,1 W/m2K

Glazing

With gaskets made of EPDM, with neutral silicone

Glazing widths

18-62 mm

Air permeability

Class 4 acc. PN 1026

Water resistance

Class E1350 acc. PN-EN 12208

Resistance to wind load

Class C3 acc. PN-EN 12210

Burglary resistance

Class RC 2 acc. PN-EN 1627

Gallery

Schilling PL Slide.HI
